Brand Name : | Komatsu |
Model Number : | PC200-7 220-7 300-7 360-7 PC200-8 300-8 360-8 |
Certification : | ISO9001 |
Price : | negotiation |
Payment Terms : | D/A, D/P, , letter of credit wire transfer Western Union MoneyGram |
Supply Ability : | 100Piece/a week |
Delivery Time : | After payment1-3day |

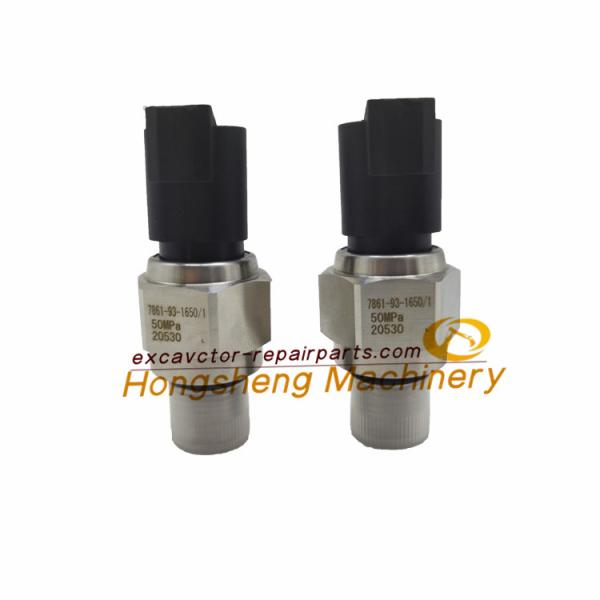

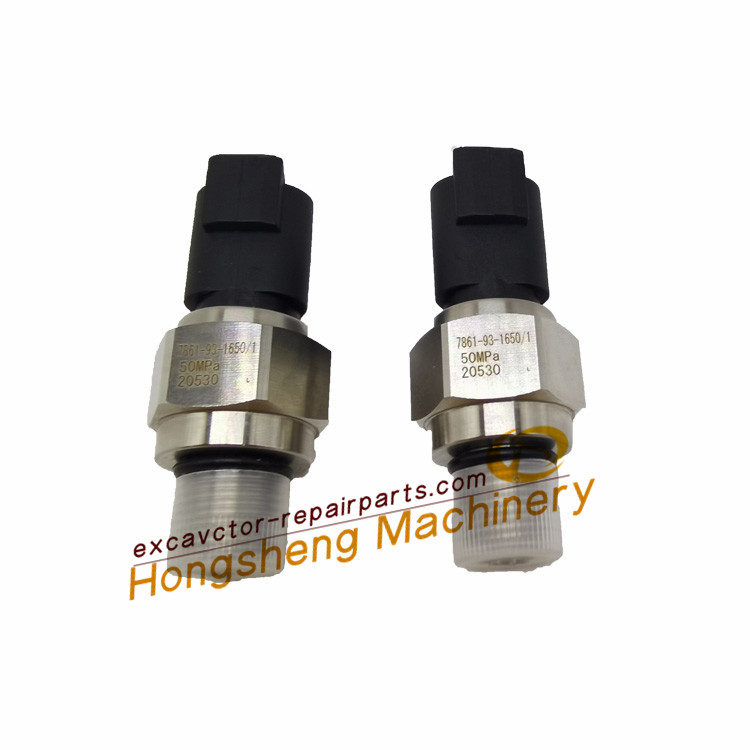

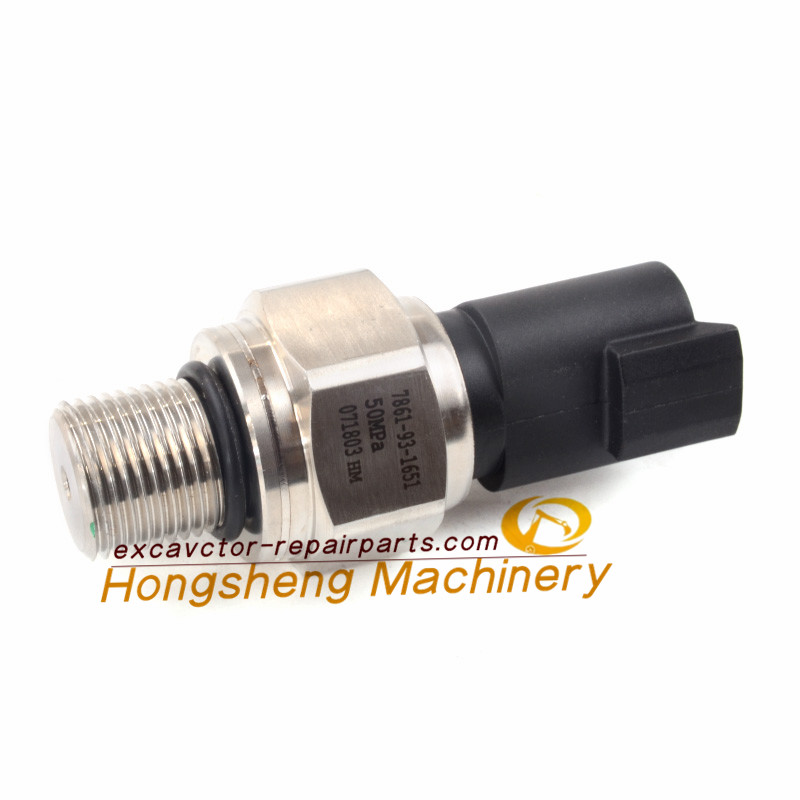

7861-93-1650/7861-93-1651 pressure sensor for Komatsu PC300 360-7 PC200-8
product details:
Komatsu pressure sensor | Hydraulic pump sensor/camshaft sensor/water temperature sensor/oil temperature sensor |
Applicable models | PC200-7 220-7 300-7 360-7 PC200-8 300-8 360-8 |
part number | 7861-93-1650/206-06-61130 7861-93-1651/20Y-06-21710 7861-92-1540/7861-93-1840 7861-92-1610/208-06-71140 |
warranty period | 3-6 months |
delivery time | In stock 1-3 days Out of stock 3-7 days |
Komatsu pressure sensor:
Komatsu pressure sensor, when the oil enters from the pressure
inlet and the pressure acts on the diaphragm of the oil pressure
detector, the diaphragm is bent and deformed. The measurement layer
is installed on the opposite side of the diaphragm, the resistance
value of the measurement layer changes, so that the curvature of
the diaphragm becomes the output voltage, which is transmitted to
the voltage amplifier, which further amplifies the voltage, that
is, and then transmits it to the electromechanical controller
(computer board). )
The higher the pressure on the sensor, the higher the output
voltage; according to the sensing pressure, the pressure sensor is
usually divided into two types: high pressure sensor and low
pressure sensor. The high pressure sensor is used to measure the
output pressure and load pressure of the main pump. Low pressure
sensors are used in pilot control systems and oil return systems.
Common working voltages of pressure sensors are 5V, 9v, 24V, etc.
(special attention must be paid to distinguish when replacing).
Generally speaking, pressure sensors on the same machine operate at
the same voltage. The working current of the pressure sensor is
very small, and it is directly powered by the computer board
Other models of excavator related sensor models:
JCBExcavator ,sensor | JCB160, JCB220, JCB240, JCB330, JS360, B75/76/80 etc ...... |
Volvo excavator ,sensor | EC55B EC140, EC160B, EC210B,EC240B,EC290B,EC360B,EC460, EC700B etc... |
Kobelco excavator ,sensor | SK45SR,SK60SR,SK100,SK120,SK200,SK210,SK230,SK250,SK260,SK300,SK330,SK350,SK460,【-5-6-8】etc.... |
CAT excavator ,sensor | CAT305.5,306,307,308,311,312,314,315,320,325,320,330,349,345,【C B D】etc.... |
Hyundai excavator ,sensor | R360-7, R320-7, R290-7, R210-7, R170, R140-9, R170W, R130-7,R145-9, R450-7, R220-9, R160-3 etc |
Sumitomo/Case Excavator,sensor | SH/CASE 75U,75X-3,75X-3B,80-3B,120-3,120-5,125X-3,130-3,135X-3,210-5,210A5,210LC-5,200LC-3,200-3,200HD-3,240-3,225X-3,350HD-3B,330LC-3,330-3,350-5,350-3B,400-3,450HD-3B,460HD-5,700LHD-3B,700LHD-5,800LHD-3B,etc..... |
Komatsu excavator ,sensor | PC60,100,120,130,160,200,210,220,230,300,360,400,450【-5-6-7-8】 PC650LC-8R PC650LCCSE-8R,PC850-8,PC850SE-8,PC1250-7,PC2000-8,PC3000-6,PC4000-6,PC5500-6,PC8000-6,etc....... |
Doosan Daewoo Excavator,sensor | DH/DX 55,60,65,75,130,150,200,215,220,225,230,260,300,305,380,450,500,【-5-7-9C-LC】etc....... |
Hitachi excavator,sensor | ZAX120-3,ZAX200-1,ZAX230,ZAX330,ZAX450-3,ZAX470LC-5G,ZAX490,EX100-1,EX120,EX200-5,EX300-2,EX300-3,EX300-3 etc..... |
Categories of Excavator Parts We Produce:
1. Engine parts: Piston,liner, gasket set, bearing, valve, crankshaft,connect rod, camshaft,cyl block,cyl head, turbo,starter, water pump, alternator, feed pump, injector, fuel pump....... |
2. Hydraulic Parts: Hydraulic main pump, gear pump, swing motor, travel motor, final drive assy, swing device unit, main control valve, hydraulic spare parts, final drive parts, swing motor parts...... |
3. Undercarriage Parts: top roller,bottom/track roller, idler,sproker, track shoe, track link, adjust cyl,arm/boom/bucket cyl, adjust spring, exvavator bucket, bucket teeth/tip, H link...... |
4. Electronic parts : Throttle/stepper motor,electric appliance,Pressure Switch, Sensor, Switch Start Flameout Solenoid , monitor, controller/ ECU...... |
5. Cabin parts : Complete cabin, cabin door, cabin door windows, cabin door lock, side door, engine cover, toolbox...... |
6. Other Parts: Seal kit, Bushing, Floating seal, O-ring box, Pusher, Coupling, Engine cushion, Gear, Raditator, Hyd oil cooler, Condenser, etc |
Other product advantages:
Shipping/Warehouse:
Q1: How is the quality? How long is the warranty? Are there any
deviations in part size?
A: High quality guarantee, 3-6 months warranty, please rest assured
that there is no deviation in the size of the parts
Q2: Can I order 1 piece for trial quality and ordering process?
Answer: Yes
Q3: Delivery time?
A: Spot delivery time is 1-3 days, out of stock delivery time is
3-7 days
Q4: What should I do if your website doesn't have what I want?
A: You can send the part number of the accessories you need or send
a picture through the contact form at the bottom and we will
provide you with a quote
Order process: From your order to delivery, we will follow up the
logistics information until you receive the goods, you can rest
assured to cooperate with us
Why choose us:
Note: Each of our parts will be tested more than 10 times from the factory to the sale to check whether the parts are normal, and then provided to customers, to ensure that we provide you with the best quality and assured products
![]() |
